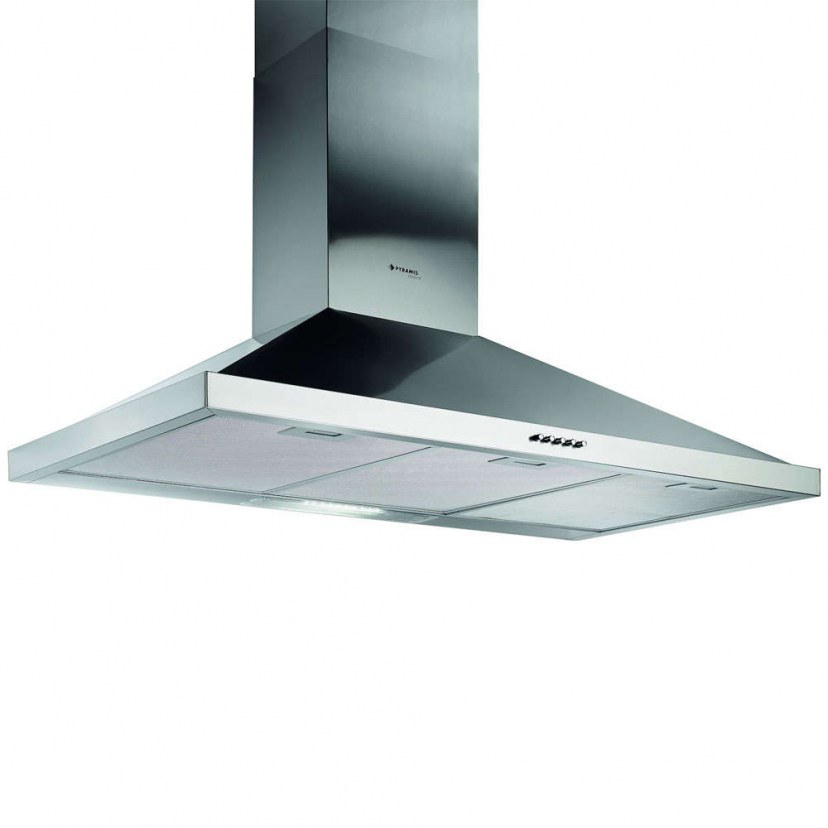

Hood With Square Chimney Ecoline 90cm 065030901 Inox Pyramis

The Ecoline 065030901 Extractor with Square Chimney will upgrade the aesthetics and functionality of your kitchen! It features push buttons for easy and simple adjustment of the intensity of absorption, its operation, and lighting.

It has three metal filters that trap grease and channel the filtered air out of the room through the extraction duct. The specially designed metal filters prevent absorbed grease from damaging the electrical parts of the extractor. They are easily removable and dishwasher safe.

The extractor has a 120W motor with low noise levels, ensuring ideal conditions for creativity in your kitchen. It has LED lighting with high and stable light flow and longer lifespan, which ensures energy savings.

- IEC Absorption Capacity: 482 m³/h
- Free Flow Absorption Capacity: 600 m³/h
- Noise Level: 57-67dB
- Motor: 190W

Installation Instructions for Maximum Performance:
- Use a cylindrical extraction duct with a diameter of 12-15 cm, smooth surface, and not corrugated, to ensure optimal airflow.
- Avoid extraction ducts longer than 5 meters.
- Avoid connections with curves or angles.
- Ensure that the minimum distance between the extractor and the stove is between 65 cm and 75 cm.
- For example, if the extractor is installed with an extraction duct longer than 6 meters and with three 90° angles, its performance is reduced by 50%.
